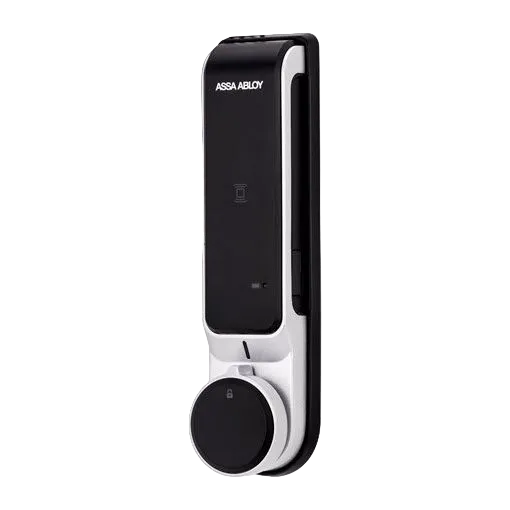

ASSA ABLOY DIGITAL CABINET READER LOCK W/BATTERIES - VERTICAL W/2 X RF CARD

ASSA ABLOY DIGITAL CABINET READER LOCK W/BATTERIES - VERTICAL W/2 X RF CARD

Regular price $638.00 NZD
Regular price Sale price $638.00 NZD
Sale Sold out
Shipping calculated at checkout.

ML5000 Series Cabinet Locks

ASSA ABLOYs new ML5000 series cabinet lock range is now the industry benchmark. The ASSA ABLOY ML5000 series has been developed for the most demanding government, commercial and institutional organizations. There are two variations to choose from, Digital PIN Keypad or RFID, offering a range of features in both that meet the requirements of lockers in a range of applications such as schools, offices, leisure centres, sports clubs or health clubs.

Both Digital PIN Keypad and RFID variants are available in models that can be easily mounted; vertically or horizontally to suit your locker design. ASSA ABLOYs cabinet locks offer safety security and convenience for your lockers and their contents.

Note: ML52-READER locks are not designed for outdoor use.
Features

  • Attractive slim design reader
  • Vertical mounting
  • Supported RF type: 13.56MHz ISO14443A MIFARE Classic, Ultralight, DESFireEV1
  • Accepts up to 20 Administration Cards, 20 Master Cards and 20 User Cards per lock
  • RFID Card to be ordered separately (SKU: AA-ACC-BLANK-CARD)
  • Battery status LED
  • Lock status LED
  • Power - standard Alkaline batteries, 3 x AAA
  • Micro USB battery back up
  • Suits doors to 23mm thick
  • 3mm stainless steel cams
  • 96 hours salt spray tested
  • Non-handed


Specifications

  • Material: Die-cast (Body and Knob), ABS (Front)
  • Operating Temperature: -20oc to +70oc
  • Operating Humidity: 0 to 90%
  • Salt spray tested to 96 hours
  • Door Thickness 1mm to 23mm
  • RFID Type 13.56 MHz ISO14443A MIFARE Classic* Ultralight, DESFireEV1


Credential Levels
Administration: 1-20 RF Tags
Master: 1 - 20 RF Tags
User: 1 - 20 RF Tags

Battery / Life:
3 x AAA Alkaline batteries
1.5 Years (using 10 times a day)

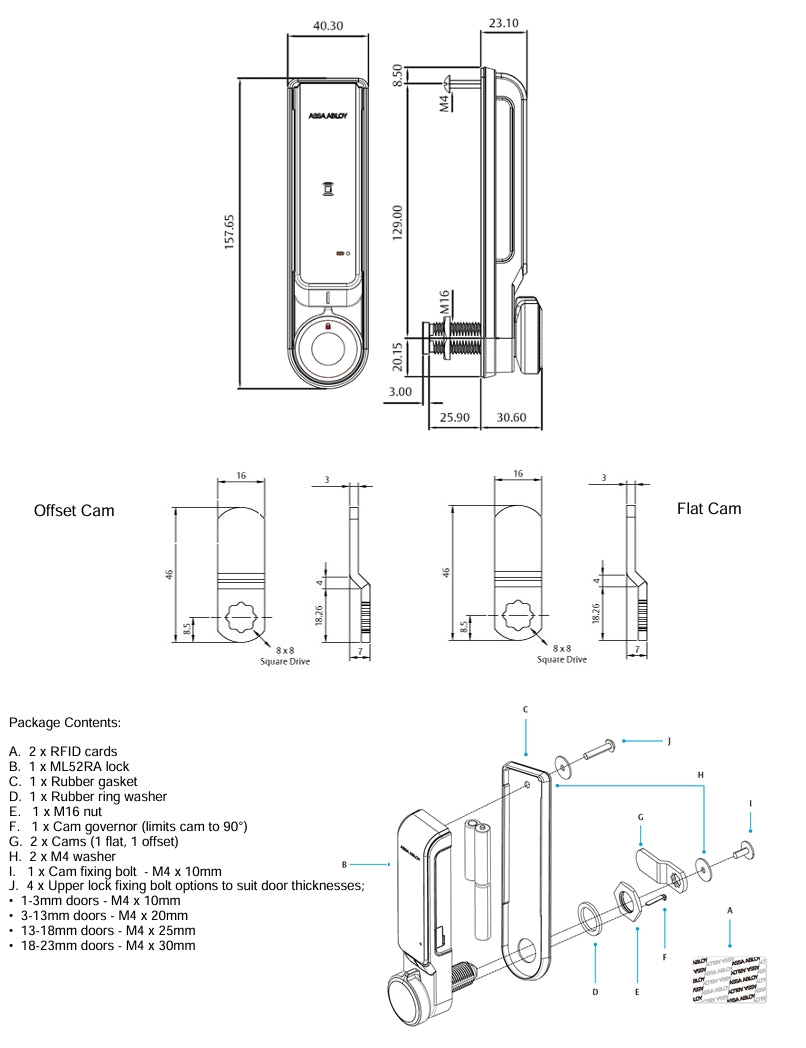

Cam
2 x Standard 3mm thick stainless steel cams supplied, one straight cam, one offset cam
Note:Other 8 x 8mm square drive cams are suitable for this product

Dimensions
Height: 158mm
Width: 40mm
Depth (body): 23mm
Depth (knob): 31mm

Stock code - ML52-READER
