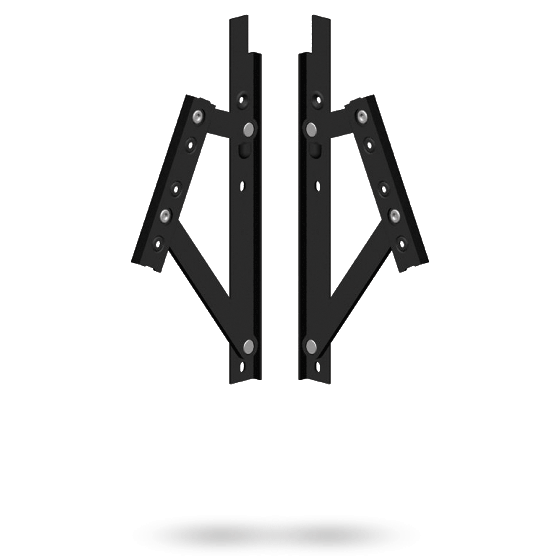

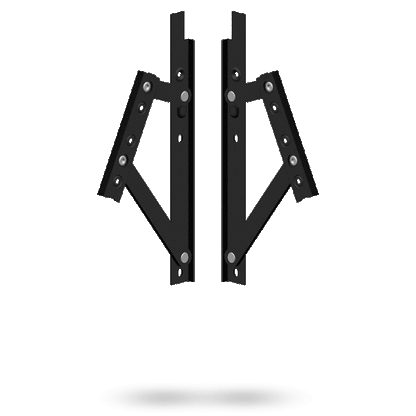

A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications the A-Series has five sizes suitable for sashes up to 43kg. 4-bar friction stays provide support and control of standard weight projected top hung (PTH) sashes. The A-Series friction hinges (stays) are manufactured from extruded aluminium and has no sliding channels.
Features
Full friction type
Manufactured with the unique inch pull-in inch feature
No sliding channels
Factory set friction levels thus no on-site adjustment needed
Incorporates the patented Interlock friction bearing
Supplied as a pair
Suitability Maximum sash height 1000mm Opening angle 35° Maximum sash weight 9kg
