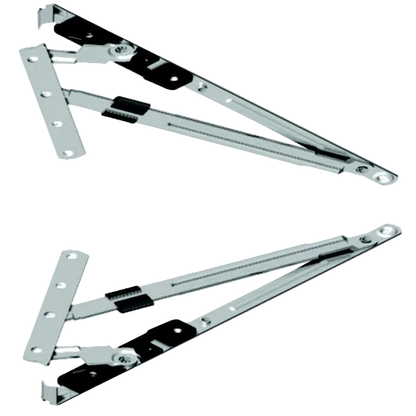

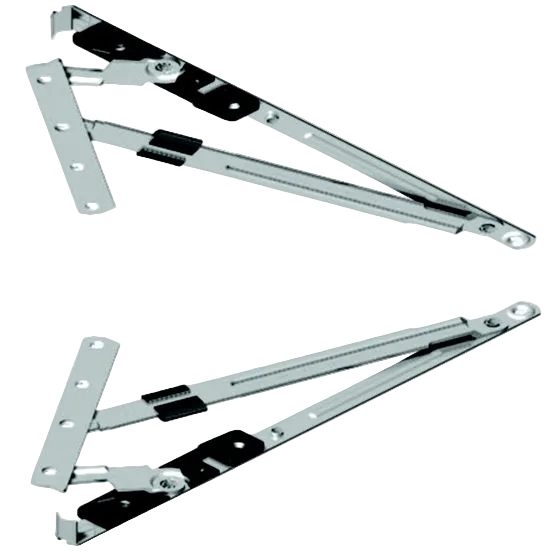

A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung sashes. Manufactured from 304 grade austenitic stainless steel. A premier stay series available in 3 sizes for sashes in residential or light commercial applications.
Features
Full friction type
Manufactured with the unique inch pull in inch feature.
No sliding channels.
Factory set friction levels.
Incorporates the patented Interlock friction bearing.
Supplied as a pair
Suitability Maximum sash width 1000mm Opening angle 90° Maximum sash weight 40kg
