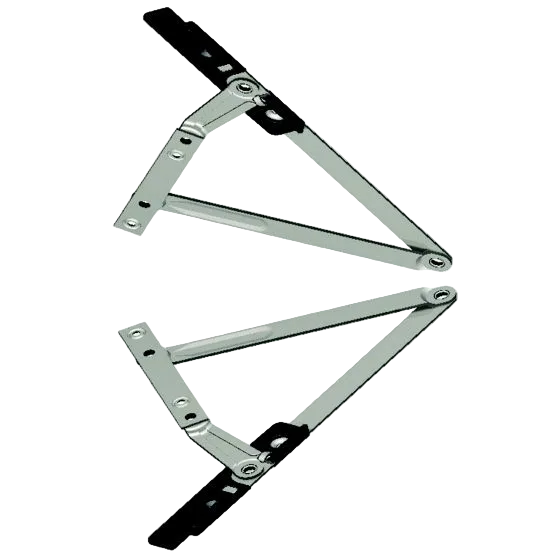

INTERLOCK WINDOW STAY 300 4BC - CASEMENT - STANDARD FRICTION

Interlock 4 Bar Casement Series Friction Stay

A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung sashes. Manufactured from 304 grade austenitic stainless steel. A premier stay series available in 3 sizes for sashes in residential or light commercial applications.

Features

• Full friction type
• Manufactured with the unique inch pull in inch feature.
• No sliding channels.
• Factory set friction levels.
• Incorporates the patented Interlock friction bearing.
• Supplied as a pair

Suitability
Maximum sash width 750mm
Opening angle 56°
Maximum sash weight 20kg

Fixing Surfaces
Timber
Metal

Finish
Stainless Steel

Stock code - P1120
