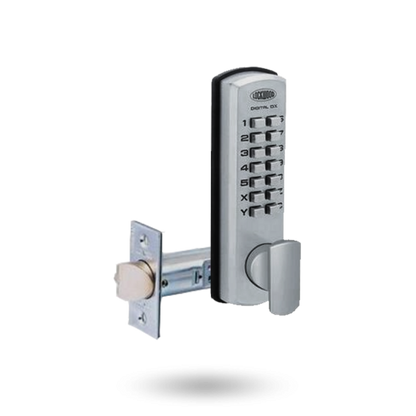

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry and are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security. For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock. Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security. The factory set 4 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock. As the digital lockset utilizes mechanical operation, electrical wiring is not required.
The Lockwood 530 Series Tubular Latches are a heavy-duty steel mortice latch series with brasslatch.
Features

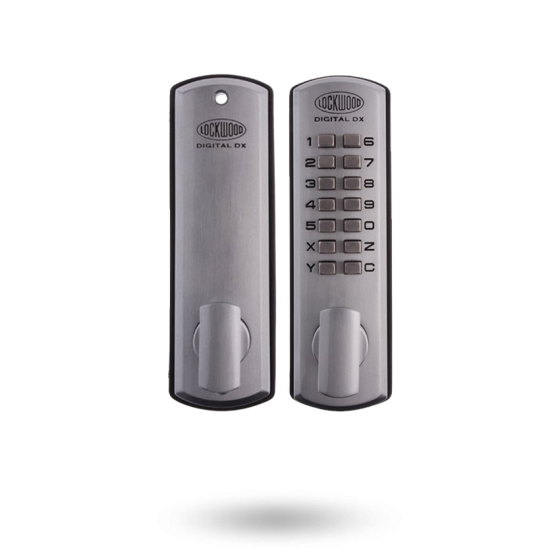

Single keypad

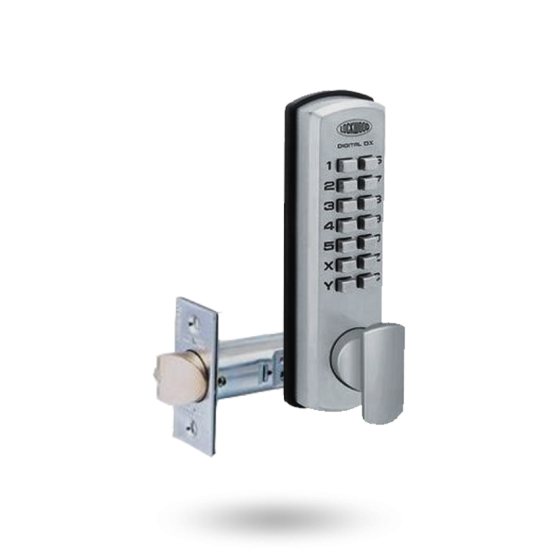

Lockwood 530 tubular latch
Backset 60mm
Latch 13mm projection
Door thickness range 35mm to 45mm
Internal case manufactured from high purity zinc alloy
Latch manufactured from stainless steel
Successfully tested (excluding rubber gasket) to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1 2005 - Part 1, Fire Resistant Door sets

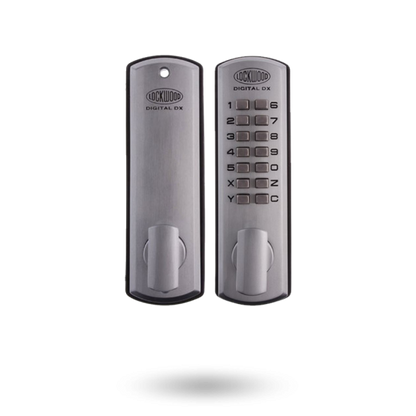

Operation Outside Function Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled. Inside Function Opened by knob/lever at all times.
Spindle 33mm to 45mm - SP10000-127ZP (supplied as standard)
Latch and Strike 60mm Backset - 530-12SC (supplied as standard)
