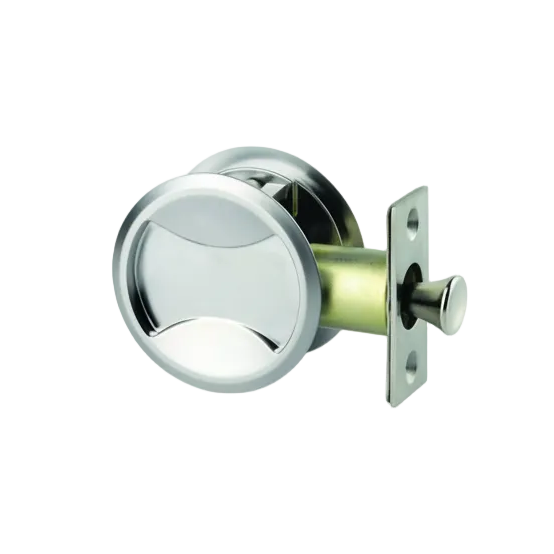

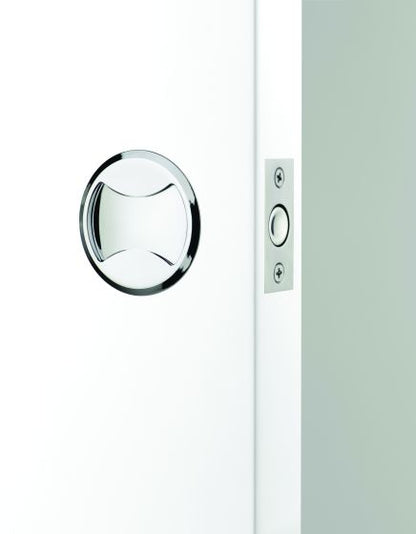

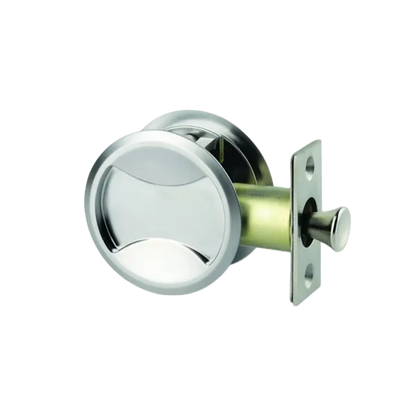

SYMMETRY CAVITY SLIDER DOOR SET - PASSAGE SATIN PEARL

Lockwood Cavity Sliding Door Lock

Lockwood’s sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in New Zealand and Australia. Combining elegance and ease of use, the Cavity Sliding Door Lock is ideal for any home décor and security solution.

Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage to the laundry can be fitted with a key lockable entrance-set for security.

Features

• Designed in Australia

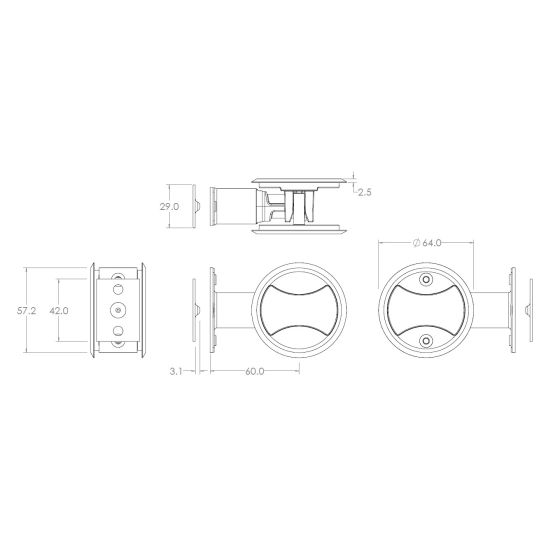

• Easily fitted into a standard 54mm door preparation with a 60mm backset
• Fitted flush against the panel of the sliding door for full recess into the door cavity
• Standard 25mm cross-drill
• Australian standards compliance AS4145.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force
• Designed after extensive research, the sliding cavity door lock features an innovative retractable door pull which combines style with functionality.


Door Thickness
32* to 45mm for timber doors
* Requires spacer ring (included)

Operation
Outside Free to slide door at all times
Inside Free to slide door at all times

Materials

• Furniture plate: Zinc Alloy
• Front End Plate: Stainless Steel
• Retractable Door Pull: Zinc Plated
• Strike Plate: Stainless Steel

Finish
Satin Chrome Pearl

Stock code - L7450SPDP (SP)
