The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
The Yale Aria Palladium is a style developed by ASSA ABLOY that has been fashioned into a contemporary and elegant furniture range. Complementary to modern joinery with its sleek offset centreline, the Yale Aria Palladium range is encompassed by a number of ASSA ABLOY window and door hardware products. Available in an array of colour finishes, choosing Yale Aria Palladium allows for continuity of aesthetics throughout the home.
Features
Yale Aria furniture ensures a consistent look can be achieved throughout the building
Passage function

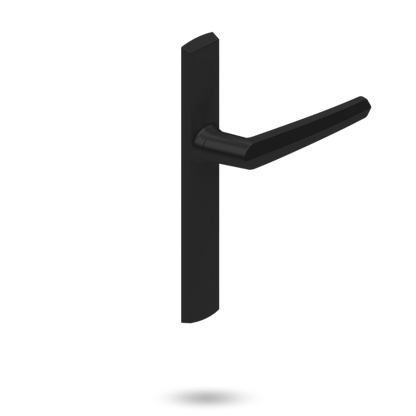

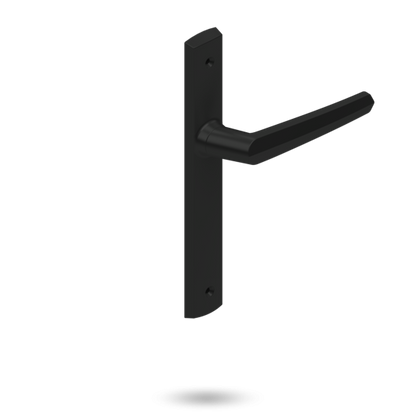

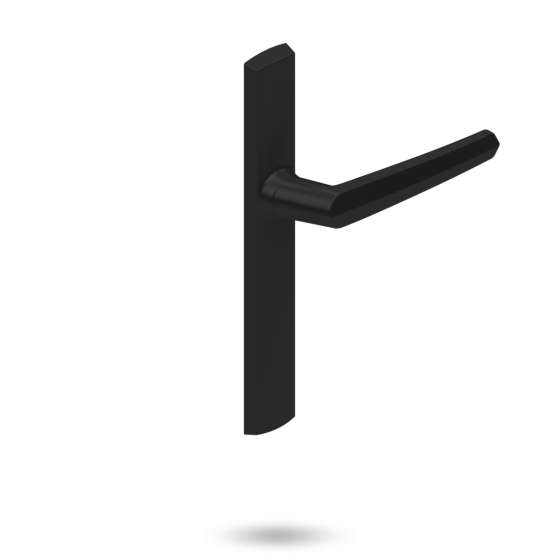

Internal and External non-locking plates
Non-handed
Solid metal lever and escutcheon
Includes 7.6mm square stepped spindle
Visible internal and concealed external fixing
M4 Trilobial thread cutting screws into non-threaded screw posts

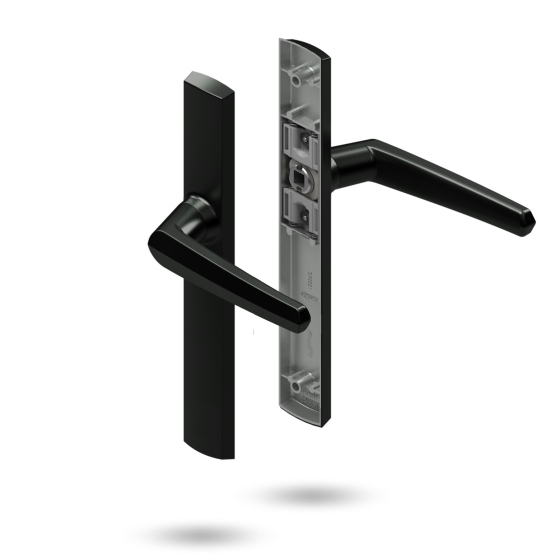

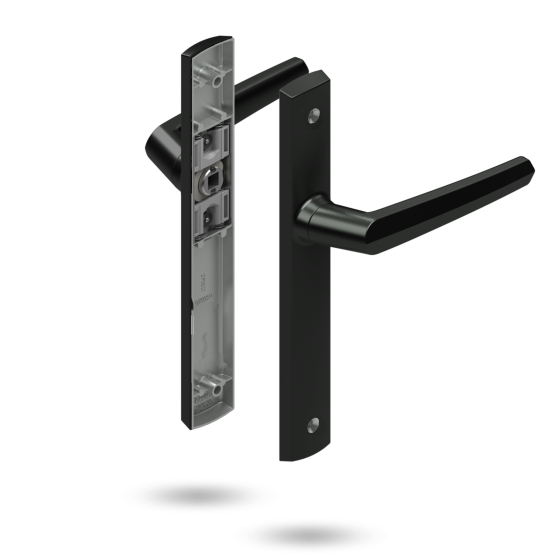

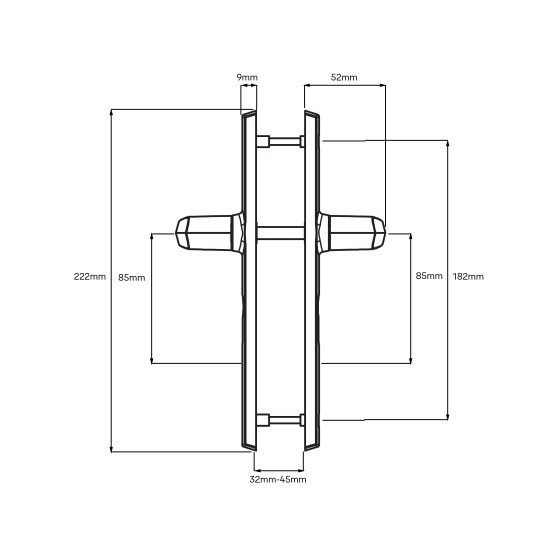

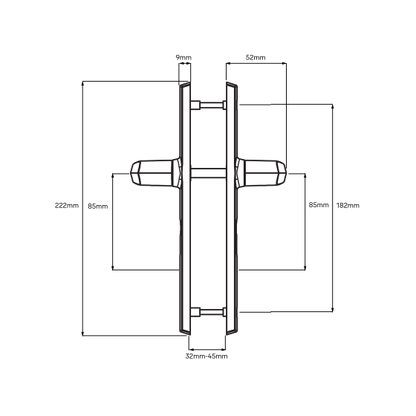

Plates are designed to fit back to back to be fully concealed externally
The mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
Polyester powder coat finish
Supplied in trade pack
New Zealand designed
Operation These are used on the active door of either single or double doors. The outside furniture has concealed fixing; the inside furniture has visible fixings. There is no locking cylinder; the handle operates the latch on the lock and throws bolts when used with a compatible multi point lock.
Suitability Residential and semi-commercial buildings, with Yale Optimum, Induro and Union mortice locks.
Materials All plates and levers in the are constructed from solid zinc die-cast.
Lever Dimensions Length: 123mm Projection: 48mm Finger clearance: 36mm
Kit Includes 1 x Yale Aria lever plate - LPL10070027 1 x Yale Aria lever plate - LPL10090027 1 x Yale 92mm x 7.6mm spindle - P35500 1 x Yale 104mm x 7.6mm spindle - P35501 1 x Yale screw pack - 100063
