The Verona Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing.

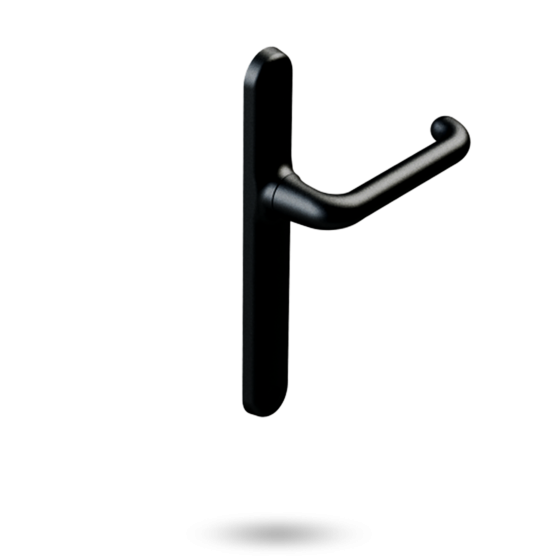

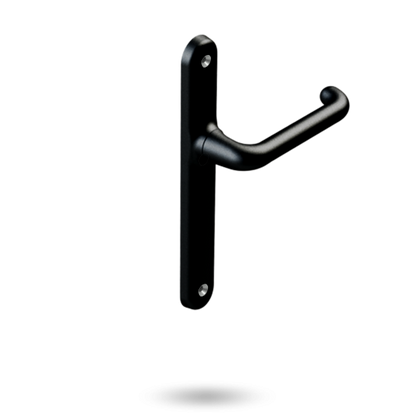

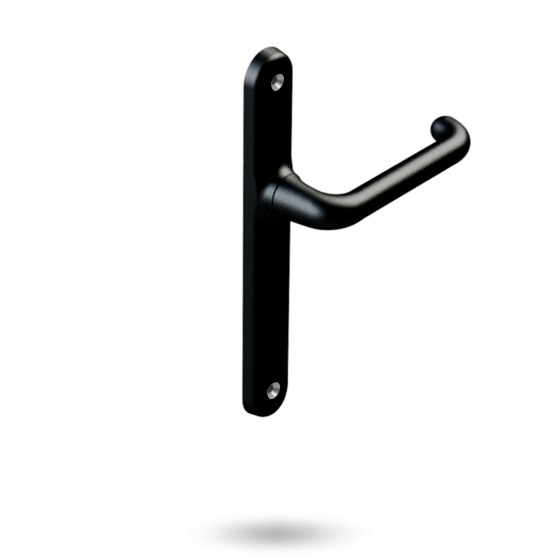

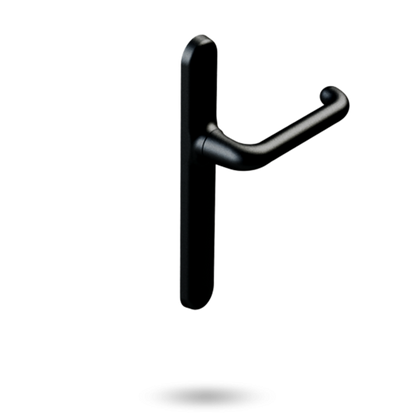

The Verona handle complements any hinged door lock as a quality and stylish door accessory. The Verona is used with short backset lock mechanisms and has a full-grip lever. Available in an array of colour finishes, choosing Yale Verona allows for continuity of aesthetics throughout the home.
Features
Verona furniture ensures a consistent look can be achieved throughout the building
Passage function
Internal and External non-locking plates
Non-handed
Solid metal lever and escutcheon
Includes 7.6mm square stepped spindle
Visible internal and concealed external fixing
M4 thread cutting screws into non-threaded screw posts

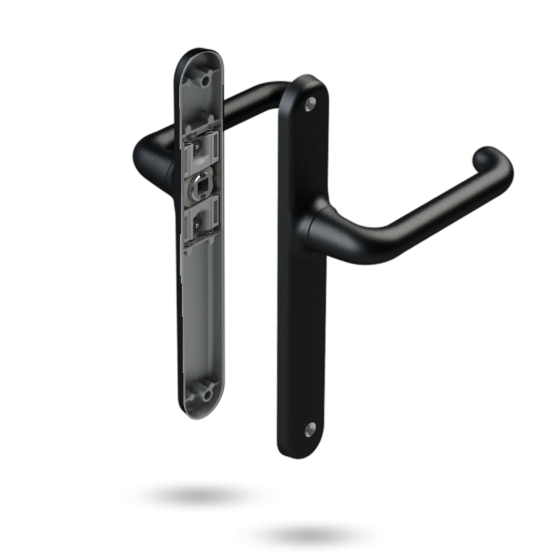

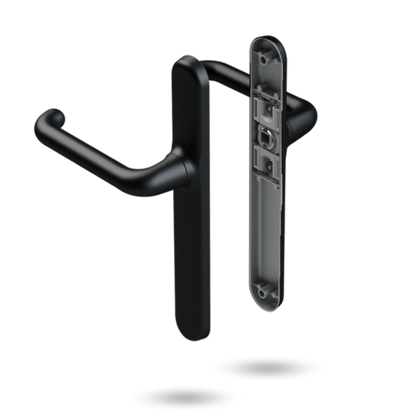

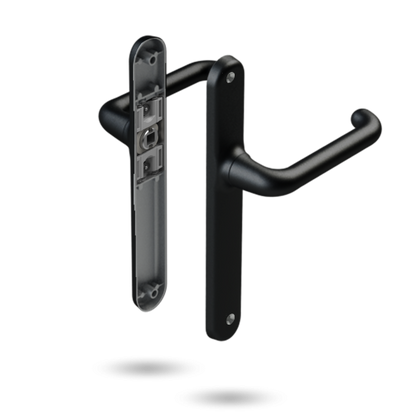

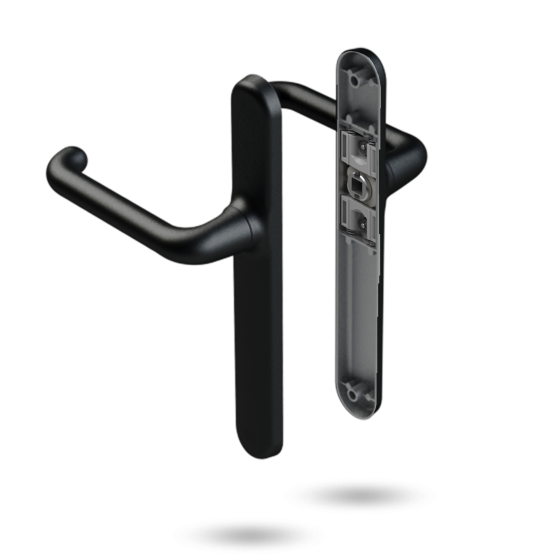

Plates are designed to fit back-to-back to be fully concealed externally
The mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
Polyester powder coat finish
New Zealand designed
Operation These are used on the active door of either single or double doors. The outside furniture has concealed fixing, the inside furniture has visible fixings. There is no locking cylinder; the handle operates the latch on the lock and throws bolts when used with a compatible multi point lock.
Suitability Residential and semi-commercial buildings, with Yale Optimum, Induro and Union mortice locks.
Materials All plates and levers in the are constructed from solid zinc diecast.
Lever Dimensions Length: 130mm Projection: 56mm Finger clearance: 46mm
Kit Includes 1 x Yale Verona lever plate - VR10700 1 x Yale Verona lever plate - VR10900 1 x Yale 92mm x 7.6mm spindle - P35500 1 x Yale 104mm x 7.6mm spindle - P35501 1 x Yale screw pack - 100063
