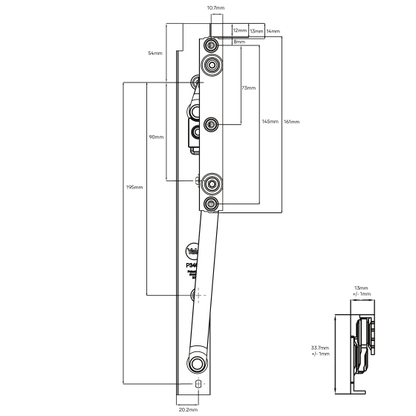

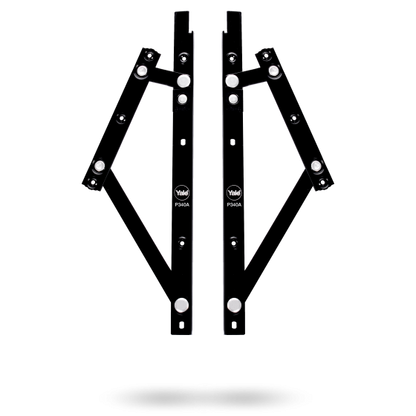

YALE WINDOW STAY 340A - AWNING - STANDARD FRICTION

Yale Nexus HCA Window Stay

Developed in response to changing market requirements for larger window sashes in projected top hung awning windows, the Yale Nexus window stay range can support window weights of up to 60kg and 2000mm in height, while still maintaining endurance performance and handle forces, making it the highest capacity aluminium residential window stay on the market.
The unique identification mark for high friction versions makes it easy to tell the difference between the high and standard friction versions of the stay range. The high friction versions have an identification ring pressed into the face of the rivet head.
The innovative integrated friction joint for high capacity has been designed to give consistent friction throughout the life of the product without adjustment and meets the requirements of NZ:4211.
An optimized geometry has been designed to meet handle force requirements for a range of windows within specified window heights.

Features

• Designed for use with a wide range of window profiles
• Standard friction window stay type
• Unique longer frame plate locates directly into section
• Supports window weights up to 18kg
• For installation into windows up to 1000mm high
• Maximum opening angle 28°
• Patented innovative integrated friction joint
• Geometry optimized for window range
• Manufactured with unique ‘pull-in’ feature
• For projected top hung awning windows
• Complies with requirements in NZ:4211
• Provides compression weather seal
• Suitable for aluminium and timber window applications
• Manufactured from extruded aluminium with no sliding channels
• Tested to 36,000 cycles
• Supplied as a pair
• New Zealand designed

Finish
Black

Stock code - P340A
