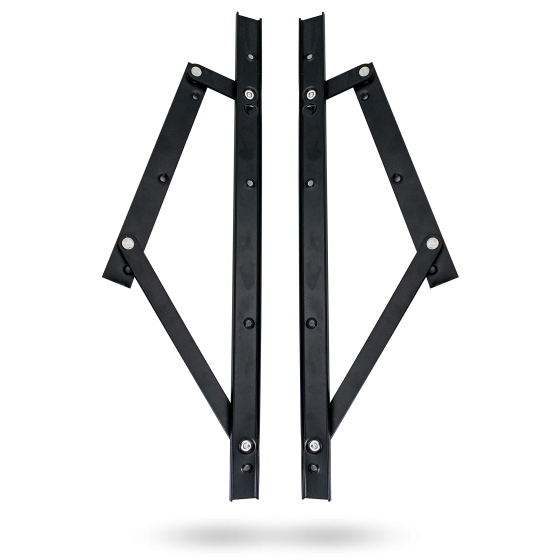

YALE WINDOW STAY 240 CHH - AWNING - STANDARD FRICTION

Yale CHH Friction Stay

A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications, the CHH Stays have four sizes suitable for sashes up to 16kg.

Features

• For retrofit applications
• Manufactured with the unique inch pull-in inch feature
• No sliding channels
• Factory set friction levels thus no on-site adjustment needed
• Supplied as a pair

Available in 4 sizes, designated by the frame plate length, catering for top hung sashes up to 1200mm in height and weighing up to 16kg. Designed to fit cavity 30 ±1mm X 20 ±1mm

Suitability
Overall length 240mm
Maximum sash height 800mm
Opening angle 40°
Maximum sash weight 8kg

To suit Fisher & Rylock window frames

Fixing Surfaces
Timber
Metal

Finish
Black Powder coated Aluminium

Stock code - P362B
